Product details:

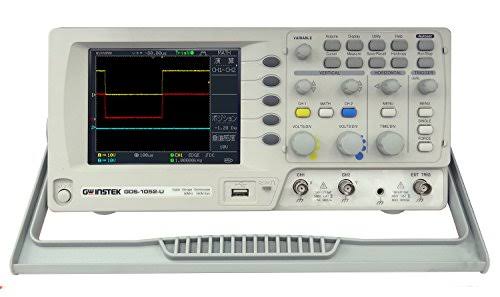

The Instek GDS-1000-U series is a two-channel, portable digital oscilloscope with a maximum real-time sample rate of 250MS/s, a record length of 4 kpts, auto-set function, advanced triggering, two basic math functions and FFT, 19 measurement parameters, an internal memory for data storage, data logging, and USB connectivity for electronics applications such as such as product design, assembly lines, repair and servicing, and electrical engineering, among others. The sample rate and record length enable long capture times for displaying detailed waveforms. An auto-set function automatically configures the optimum settings for displaying waveforms by selecting the horizontal and vertical scales, positioning the waveform horizontally and vertically, and selecting and activating the trigger source channel. In addition to an edge trigger, the unit has pulse width and video triggers for isolating a specific signal. Two basic math functionsadd and subtractplus FFT (fast fourier transform) and 19 measurement parameters such as average, frequency, and peak-to-peak allow an in-depth analysis of waveforms. A go/no go test function promptly indicates when a signal falls outside user-defined settings, and a zoom function magnifies details of waveforms. Up to 15 waveforms or 15 setups can be stored in the internal memory of the oscilloscope. A data logging function tracks data at user-defined timed intervals for up to 100 hours, logging the data on a USB flash drive (sold separately). Additional specifications include a rise time of 7ns for the 50MHz model, 5ns for the 70MHz model, and 3.5ns for the 100MHz model, and various triggering features. The oscilloscope has a 5.7" color TFT (thin film transistor) LCD with a resolution of 320 x 234 pixels and can show simultaneously show up to two live and two stored waveforms. The oscilloscope has a USB host port for connecting a flash drive (sold separately) to store data and a USB device port for connecting to a PC for storing data and remote operation. The unit meets EN (European Standard) 61010-031 safety standard, and is rated for CAT (category) II installations to 300V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has CE (European Conformity) marking. It comes with two passive voltage probes, a power cord for 100 to 240VAC, 50/60Hz, and a user manual.SpecificationsDisplay5.7" color TFT-LCDBandwidths available50, 70, 100MHzChannelsTwoMaximum real-time sample rate250MS/s - Record length4 kpts - Installation rating - CAT II, 300VStandards met - EN 61010-1-031; CE marking - Power source - Power cord for 100 to 240VAC, 50/60Hz - Dimensions (H x W x D)142 x 310 x 140 mm - Weight2.5 kg - H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Oscilloscopes are electrical testing devices used to verify the functio
